Nokia 4A0-108 Quiz 1 Topic 5 Questions 1-5

Question: 1

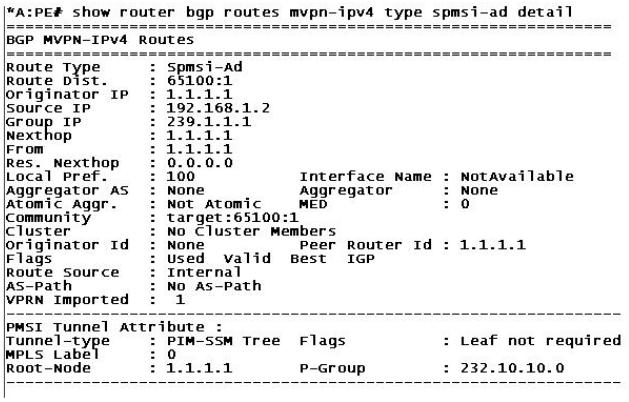

Click the exhibit.

q1_4A0-108

According to the output shown, which of the following statements is FALSE?

AThe S-PMSI is instantiated by GRE tunnels.

BThe I-PMSI group address is 232.10.10.0.

C192.168.1.2 is the IP address of the multicast source.

DThe customer is sending multicast traffic to group 239.1.1.1.

Show Answer

Question: 2

The customer multicast network is running PIM SSM. The MVPN is using BGP A-D to distribute C-multicast routes. Which BGP route does a PE send to the core when it receives a PIM (S,G) Join from its CE?

AS-PMSI A-D route

BSource Active A-D route

CShared Tree Join A-D route

DSource Tree Join A-D route

Show Answer

Question: 3

Which of the following best describes the PMSI (provider multicast service interface) in an MVPN service?

AThe PMSI is the interface between the PEs and CEs in an MVPN service.

BThe PMSI is an overlay broadcast network that interconnects all PEs in an MVPN service.

CThe PMSI is the PIM-enabled interface between the PEs in an MVPN service.

DThe PMSI is the GRE tunnel that carries customer multicast traffic across the service provider core network.

Show Answer

Question: 4

Under what circumstances will the multicast data flow remain on the Shared Path Tree in a PIM ASM network?

AWhen multicast traffic is below a configured threshold

BIt will always remain on the Shared Path Tree

CIt will never remain on the Shared Path Tree

DWhen PIM Dense Mode is in use

Show Answer

Question: 5

An IGMP version 3 receiver signals INCLUDE mode report with an empty INCLUDE list. What does this indicate?

AIt received the query, but it does not wish to join any group.

BIt is willing to receive traffic for the group from any source.

CThis is the initial join message; a selection of source will follow.

DIt indicates that it is leaving the group.

Show Answer

Nokia 4A0-108 Quiz:1 Topic:5 Questions:1-5
