Huawei H12-211 Quiz 33 Topic 8 Questions 161-165

Question: 1

According to the command shown above, the correct one in the following description is (). (multiple choice) [Huawei-GigabitEthernet0/0/1]port link-type access

[Huawei-GigabitEthernet0/0/1]port default vlan 10

[Huawei-GigabitEthernet0/0/2]port link-type trunk

[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan 10

AThe PVID of port GigabitEthernet 0/0/1 is 10.

BThe PVID of port GigabitEthernet 0/0/1 is 1.

CThe PVID of GigabitEthernet0/0/2 is 10

DThe PVID of the GigabitEthernet0/0/2 port is 1.

Show Answer

Question: 2

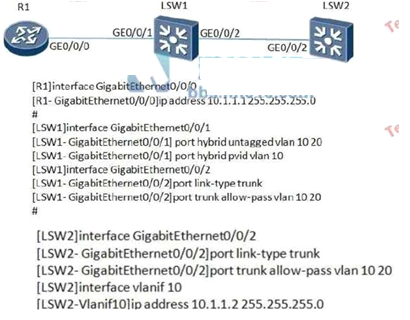

As shown in the figure, if the command ping 10.1.1.2 is executed on R1, LSW1 receives the data frame from VLAN 10 of LSW2.

Signed.

q2_H12-211

ACorrect

BError

Show Answer

Question: 3

The CHAP authentication command enabled in .PPP is: ppp chap authentication.

ACorrect

BError

Show Answer

Question: 4

The Ethernet electrical interface can work in 3 duplex modes, and the Ethernet optical interface can only work in () mode.

AFull duplex

BHalf duplex

CAuto-negotiation

DSimplex

Show Answer

Question: 5

What are the following characteristics of the default VLAN in a Layer 2 Ethernet switch? (multiple choice)

AThe default VLAN cannot be manually deleted

BBy default, the switch is a member port of the default VLAN.

CYou must create a default VLAN before you can assign a port to it.

DThe IP address configured on the switch will only be applied to the member port of the default VLAN.

Show Answer

Huawei H12-211 Quiz:33 Topic:8 Questions:161-165
