Huawei H12-211 Quiz 48 Topic 5 Questions 236-240

Question: 1

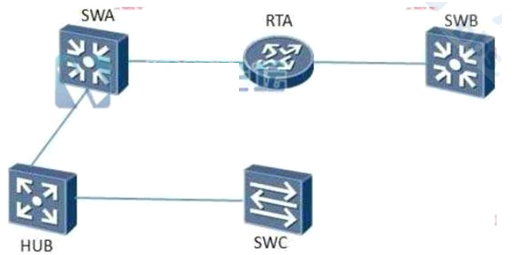

In the network as shown, the following description is correct (). (multiple choice)

q1_H12-211

AThe same collision domain between RTA and SWC

BThe same broadcast domain between SWA and SWB

CSWA and SWC are both a collision domain

DSWA and SWC are both a broadcast domain

Show Answer

Question: 2

When the route has a loop, which of the following problems may occur? (multiple choice 2)

APackets are passed endlessly

BIncreased CPU consumption of the router

CIncreased memory consumption of the router

DThe destination IP address of the packet is constantly modified.

EThe number of bytes in the packet is getting bigger and bigger

Show Answer

Question: 3

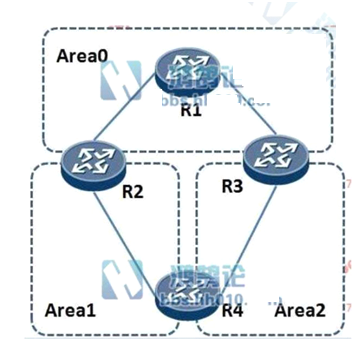

The network structure and OSPF partition are shown in the figure. In addition to R1, routers R2, R3 and R4 are OSPF ABR routers.

q3_H12-211

ACorrect

BError

Show Answer

Question: 4

The two routers are running on the PPP link. The administrator has configured OSPF single areas on both routers, and their router IDs are the same.

The correct description below is ().

ATwo routers will establish a normal full neighbor relationship

BVRP will prompt the router ID conflicts between the two routers.

CTwo routers will establish a normal full adjacency

DTwo routers will not send hello messages to each other.

Show Answer

Question: 5

The company has users who report that when using the network to transfer files, the speed is very low. The administrator found a packet in the network using Wireshark software to capture packets.

Some duplicate frames, the following description of the possible causes or solutions is correct ().

AWhen the switch cannot find the destination MAC address of the data frame in the MAC address table, the switch will flood the data frame.

BThe switching equipment of the company network must be upgraded

CThe network has a loop on the second floor.

DNo VLAN is configured in the network.

Show Answer

Huawei H12-211 Quiz:48 Topic:5 Questions:236-240
