Huawei H12-211 Quiz 24 Topic 2 Questions 116-120

Question: 1

A Windows host is started for the first time. If the IP address cannot be obtained from the DHCP server, then the host may use the following one.

IP address?

A0.0.0.0

B127.0.0.1

C169.254.2.33

D255.255.255.255

Show Answer

Question: 2

On Huawei devices, administrators can announce subnets in RIPV2 because RIPV2 supports VLSM.

ACorrect

BError

Show Answer

Question: 3

The administrator wants to upgrade the configuration file for the AR2200 via a USB cable, and the following description is correct (). (multiple choice)

AConnect the mini USB cable of the PC and AR2200 with a mini USB cable.

BConnect the USB interface of the PC and AR2200 with a mini USB cable.

CThe AR2200 does not support the use of USB to update configuration files.

DAfter connecting the cable, the administrator needs to install the driver for the mini USB.

Show Answer

Question: 4

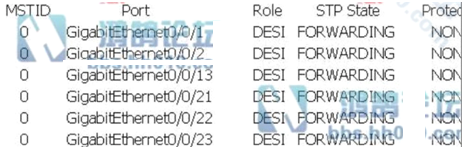

The above information is the port status information displayed on a switch running STP. Based on this information. The following description is wrong ().

q4_H12-211

AIt is possible to include only this switch in this network.

BThis switch may be a switch in the network.

CThis switch is a non-designated switch for the network it is connected to

DThis switch may be connected to 6 other switches.

Show Answer

Question: 5

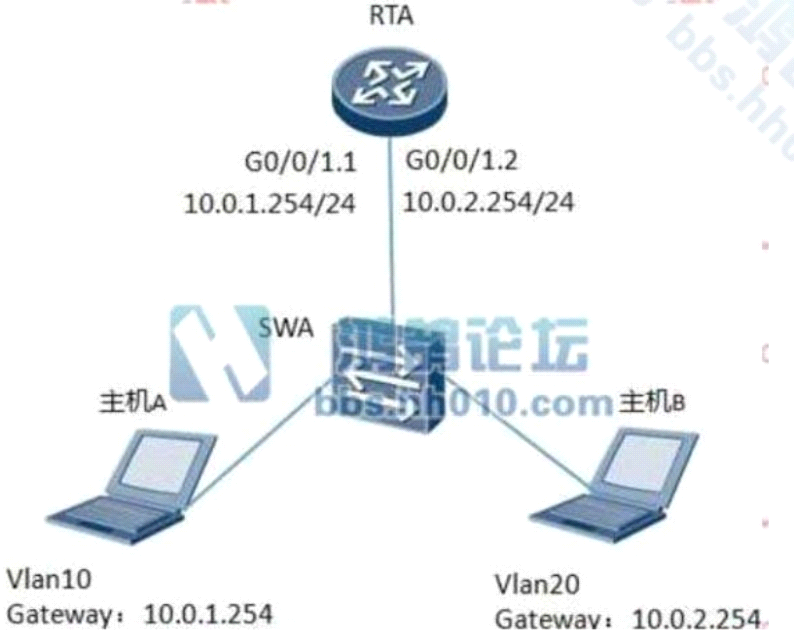

As shown in the figure, if Host A and Host B want to implement inter-VLAN communication through one-arm routing, which one should be configured under G0/0/1.1 interface of RTA.

Set?

q5_H12-211

Adot1q termination vid 1

Bdot1q termination vid 10

Cdot1q termination vid 20

Ddot1q termination vid 30

Show Answer
