HP HPE6-A69 Quiz 1 Topic 3 Questions 1-5

Question: 1

(Scenarios may contain multiple errors which may or may not impact the solution)

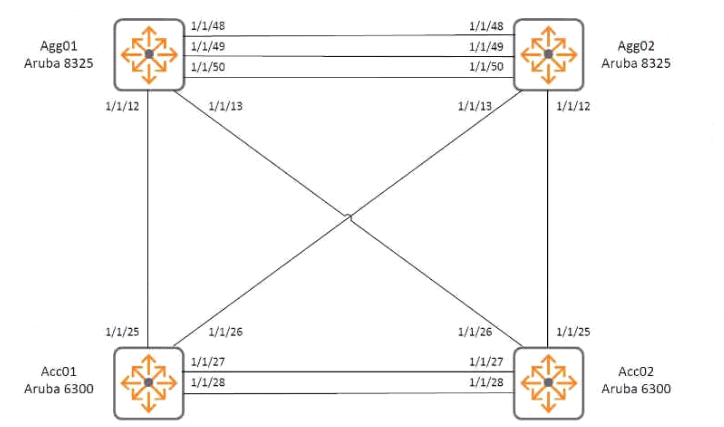

Refer to the Exhibit.

q1_HPE6-A69

An engineer has attempted to configure two pairs of switches m the referenced configuration it Is required to implement

Multi-Chassis Link Aggregation for each pair of switches

The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows

q1_HPE6-A69

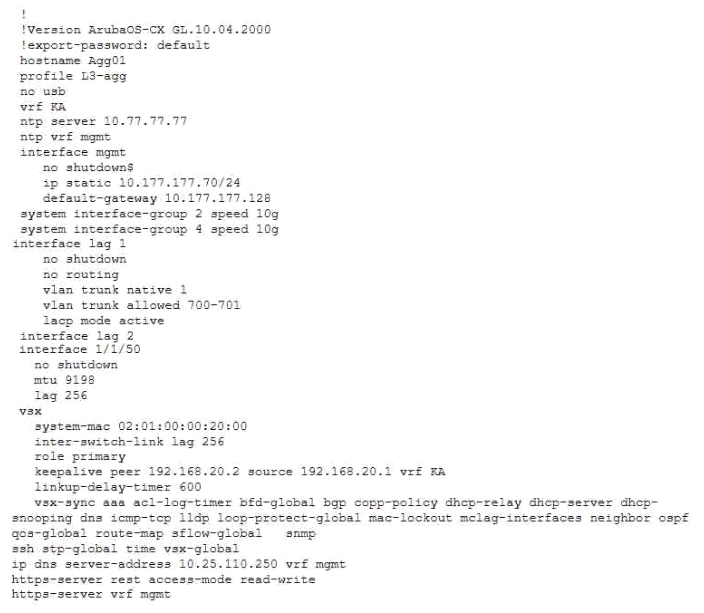

The configuration includes:

q1_HPE6-A69

There is an error message stating "mismatched group speed" What should you add to the configuration to correct the error?

A'system Interface-group 1 speed I0g'

B'allow-unsupported-transceiver

C'speed 10-full' under interfaces 1/1/12 and 1/1/13

D'speed 40-full' under interfaces 1/1/49 and 1/1/50

Show Answer

Question: 2

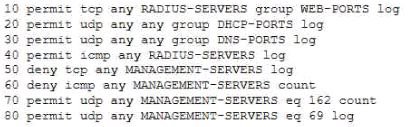

When applying me following access-Iist to an ArubaOS-CX 6300 switch:

q2_HPE6-A69

How does this ACL behave on the selected switch? (Select two.)

AThe mp traffic to MANAGEMENT-SERVERS group is logged to me event logs

BThe tftp traffic to MANAGEMENT-SERVERS group is not logged to the event logs.

CThe snmp-trap traffic to MANAGEMENT-SERVERS is logged to the event togs.

DThe denied tcp traffic to the MANAGEMENT-SERVERS group is logged to event logs.

EThe denied tcp traffic to the MANAGEMENT-SERVERS group is not logged to event logs

Show Answer

Question: 3

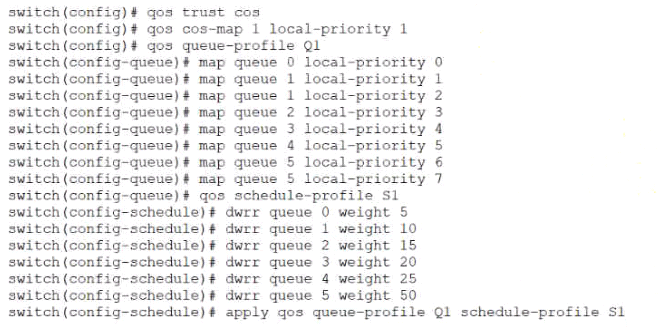

Refer to the exhibit.

q3_HPE6-A69

Which statement is true?

AQ1 and S1 are applied to all interfaces mat do not have a QoS override applied

BTo be effective, both Q1 and S1 still need to be applied to Interfaces

CNo default queues are changed

DQ1 and S1 are applied to all interfaces.

Show Answer

Question: 4

Company A and Company B are merging their BGP routed networks The companies have overlapping IP ranges and security concerns during the migration phase. Which Aruba CX 8325 functionality would help the merging of networks in a secure way?

AUse of ACL's to separate the company networks at the VLAN level

BUse of Aruba Gateway appliance to control the routes between merged networks

CUse of vsf capable switch to integrate the routing

DUse of virtual route forwarding and BGP route leaking

Show Answer

Question: 5

The customer is currently planning the migration of their current switches from the existing Aruba 5400R to ArubaOS-CX 6400. Which statements are correct about the mitigation of rogue DHCP servers with the selected product? (Select two )

AWith Aruba CX 6400 configure dhcp-snooping for the selected VLANs with authorized servers

BDHCP snooping can be enabled on ArubaOS-CX switches, once it's disabled on ArubaOS switches for same VLANs

CDHCP snooping is supported on both IPv4 and IPv6

DDHCP snooping needs to be enabled per VRF basis on Aruba CX 6400

Show Answer

HP HPE6-A69 Quiz:1 Topic:3 Questions:1-5
