F5 Networks 201 Quiz 1 Topic 1 Questions 1-5

Question: 1

A BIGJP Administrator needs to load a UCS file but must exclude the license file. How should the administrator perform this task?

AFrom the CLI with command U tmsh load /$ys ucs <ucs filename> no-license

BFrom the GUI, select the UCS file, unchcck the license box, and click restore

CFrom the CLI with command(tmos) tmsh load /sys ucs <ucs filename> no-license

DFrom the GUI, select the UCS file and click restore

Show Answer

Question: 2

A BIG-IP Administrator needs to install a HotFix on a standalone BIG-IP device, which has HD1.1 as the Active Boot Location. The BIG-IP Administrator has already re-activated the license and created an UCS archive of the configuration. In which sequence should the BIG-IP Administrator perform the remaining steps?

AInstall HotFix in HD 1.1, Reboot the BIG-IP device. Install UCS Archive

BInstall HotFix in HO 1.2, Install base Image in HD 1.2, Activate HD1.2

CInstall base Image in HD1.2, Install HotFix in HD1.2, Activate HD 1.2

DActivate HD 1.2, Install base image in HD 1.2. Install HotFix in HD 1.2

Show Answer

Question: 3

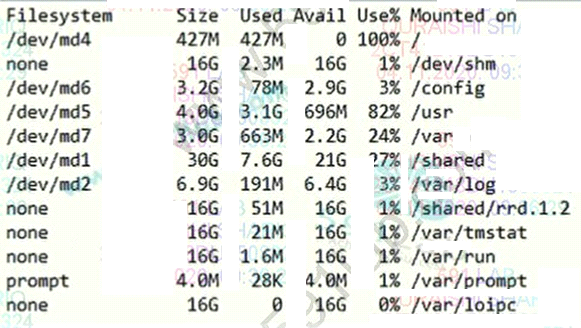

Refer to the exhibit.

q3_201

The BIG-IP Administrator is investigating disk utilization on the BIG-IP device.

What should the BIG-IP Administrator check next?

ALarge files on the / file system

BResults from the EUD test

CResults from the platform diagnostics test

DLarge files on /usr file system

Show Answer

Question: 4

Refer to the exhibit.

q4_201

A BIG-IP Administrator creates a new Virtual Server. The end user is unable to access the page. During

troubleshooting, the administrator learns that the connection between the BIG-IP system and server is

NOT set up correctly.

What should the administrator do to solve this issue?

ADisable Address Translation

BSet Address Translation to Auto Map, configure a SNAT pool, and have pool members in the same subnet of the servers

CSet Address Translation to SNAT and configure a specific translation address

DSet Address Translation to SNAT and have self-IP configured in the same subnet of servers

Show Answer

Question: 5

Which statement accurately describes the difference between two loadbalancing modes specified as "member" and "node"?

AThere is no difference; the two terms are referenced for backward compatibility purposes.

BWhen the loadbalancing choice references 'node', priority group activation is unavailable.

CLoadbalancing options referencing 'nodes' are available only when the pool members are defined for the 'any' port.

DWhen the loadbalancing choice references 'node', the addresses' parameters are used to make the loadbalancing choice rather than the member's parameters.

Show Answer

F5 Networks 201 Quiz:1 Topic:1 Questions:1-5
