Cisco 350-601 Quiz 6 Topic 3 Questions 26-30

Question: 1

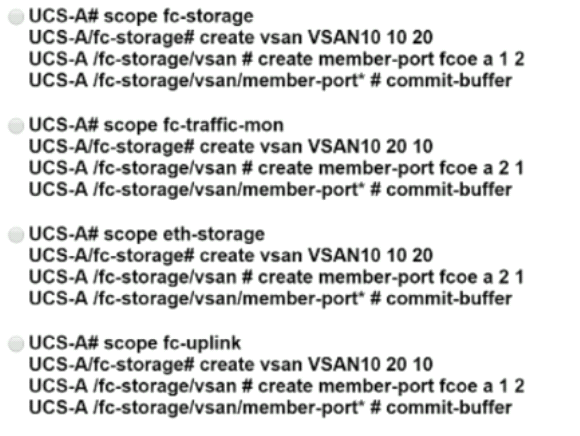

An engineer must configure a named VSAN when the fabric interconnect is in Fibre Channel switch mode The VSAN must meet these requirements:

* Named VSAN must be called "VSAN 10".

* VSAN ID must be 10.

* FCoE ID must be 20.

* VSAN 10 must be attached to port 2 in slot 1.

q1_350-601

AOption A

BOption B

COption C

DOption D

Show Answer

Question: 2

Which event is expected during direct upgrade of Cisco UCS Manager firmware?

AThe I/O Module reboots immediately after the firmware is activated.

BAll users logged in to the UCSM are logged out, and their sessions end.

CData traffic is disrupted for a single fabric interconnect setup.

DIPMI polling is interrupted.

Show Answer

Question: 3

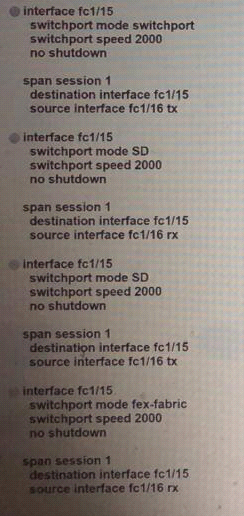

A network engineer must configure a Fibre Channel port monitoring for the local port. The source port should be monitored in the ingress direction. which configuration should be implemented to achieve this objective?

q3_350-601

AOption A

BOption B

COption C

DOption D

Show Answer

Question: 4

An engineer must create a backup file of the entire Cisco UCS system before the maintenance window starts. The backup file must include these attributes:

* all logical configuration settings such as service profiles. VLANs. and VSANs

* all Cisco UCS usernames. roles, and locales

* all Cisco UCS system settings

Which backup type must be selected to achieve this goal?

AAll Configuration

BFull State

CSystem Configuration

DLogical Configuration

Show Answer

Question: 5

Which three firmware packages are included in the Cisco UCS C-Series Rack-Mount UCS-Managed Server Software bundle? (Choose three.)

ACIMC

Bboard controller

Csystem

Dthird-party

EBIOS

Fadapter

Show Answer

Cisco 350-601 Quiz:6 Topic:3 Questions:26-30
