Cisco 350-401 Quiz 2 Topic 16 Questions 6-10

Question: 1

What does the cisco REST response indicate?

ACisco DNA Center has the Incorrect credentials for cat3850-1

BCisco DNA Center is unable to communicate with cat9000-1

CCisco DNA Center has the incorrect credentials for cat9000-1

DCisco DNA Center has the Incorrect credentials for RouterASR-1

Show Answer

Question: 2

A network engineer configures a new GRE tunnel and enters the show run command. What does the output verify?

AThe tunnel will be established and work as expected

BThe tunnel destination will be known via the tunnel interface

CThe tunnel keepalive is configured incorrectly because they must match on both sites

DThe default MTU of the tunnel interface is 1500 byte.

Show Answer

Question: 3

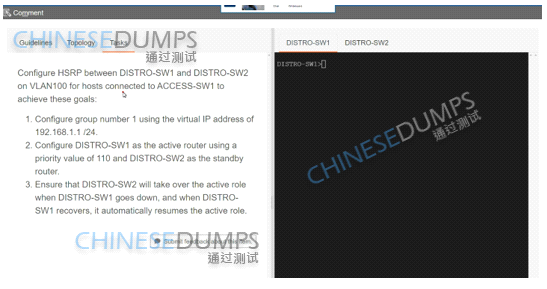

Simulation 02

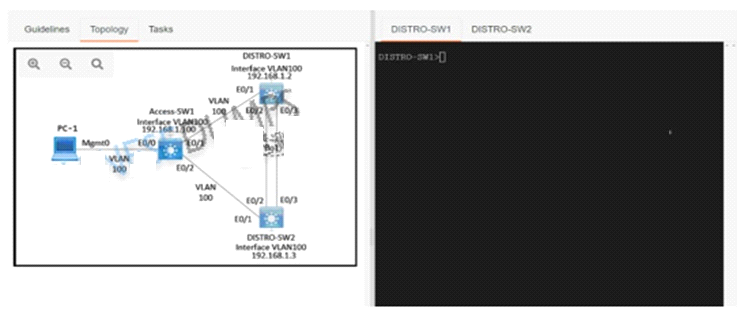

Configure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESS-SW1 to achieve these goals:

1. Configure group number 1 using the virtual IP address of 192.168.1.1/24.

2. Configure DlSTRO-SW1 as the active router using a priority value of 110 and DISTRO-SW2 as the standby router.

3. Ensure that DISTRO-SW2 will take over the active role when DISTRO-SW1 goes down, and when DISTRO-SW1 recovers, it automatically resumes the active role.

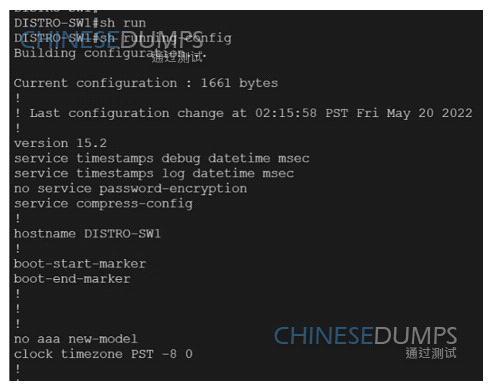

q3_350-401

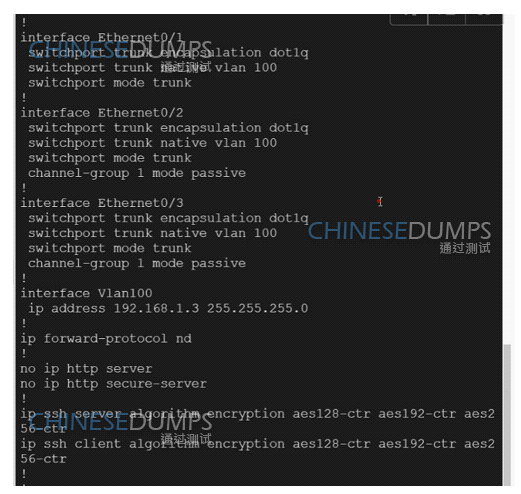

DISTRO-SW2

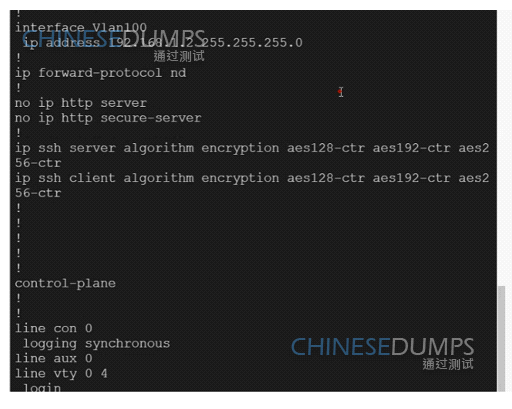

q3_350-401

AExplanation:

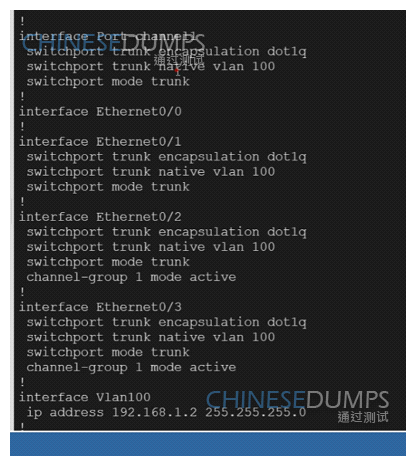

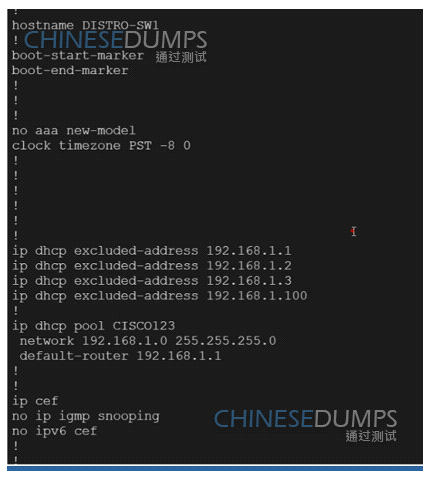

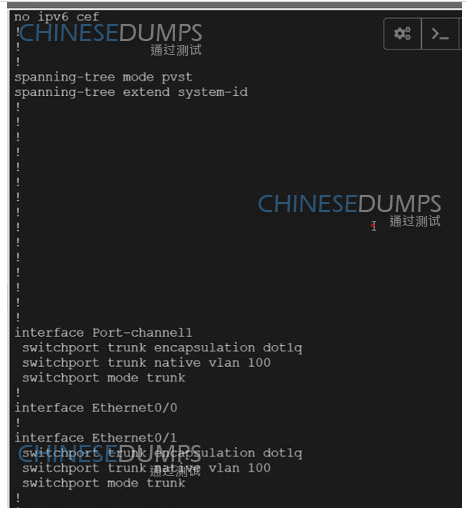

DISTRO-SW1
Sw1
int vlan 100
standby 1 ip 192.168.1.1
standby 1 priority 110
standby 1 preempt
copy run start
DISTRO-SW2
SW2
int vlan 100
standby 1 ip 192.168.1.1
standby 1 preempt
copy run start
OR

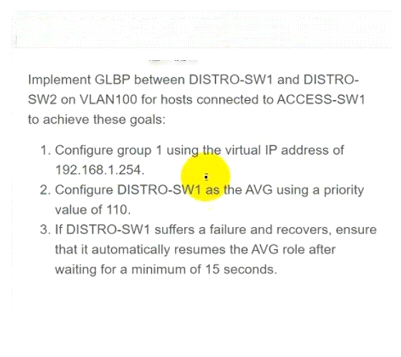

MINOR CHANGE IN ABOVE HSRP SCENERIO

Check the IP address 1.254 check the minimum 15 seconds solution get change.
DISTRO-SW1
Sw1
int vlan 100
glbp 1 ip 192.168.1.254
glbp 1 priority 110
glbp 1 timers 5 15
glbp 1 preempt
copy run start
DISTRO-SW2
SW2
int vlan 100
glbp 1 ip 192.168.1.254
glbp 1 timers 5 15
glbp 1 preempt
copy run start

Show Answer

Question: 4

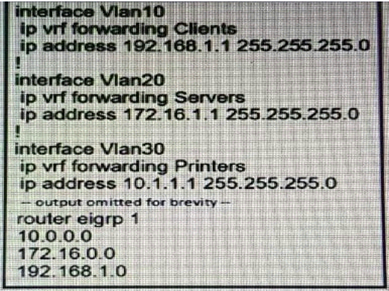

Refer to the exhibit.

q4_350-401

An engineer attempts to configure a router on a stick to route packets between Clients, Servers, and Printers; however, initial tests show that this configuration is not working. Which command set resolves this issue?

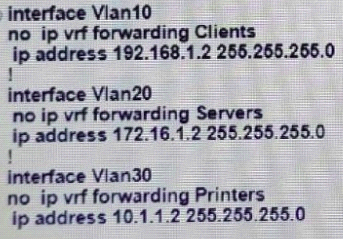

A)

q4_350-401
