Question: 1

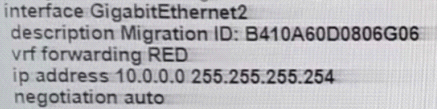

An engineer is implementing a coordinated change with a server team As part of the change, the engineer must configure interlace GigabitEthernet2 in an existing VRF 'RED' then move the interface to an existing VRF 'BLUE' when the server team is ready. The engineer configured interface GigabitEthemet2 in VRF 'RED'

q1_300-410

Which configuration completes the change?

Ainterface GigabitEthernet2
no ip address
vrf forwarding BLUE

Binterface GigabitEthernet2
no vrf forwarding RED
vrf forwarding BLUE
ip address 10.0.0.0 255.255.255.254

Cinterface GigabitEthernet2
no vrf forwarding RED
vrf forwarding BLUE

Dinterface GigabitEthernet2
no ip address
ip address 10.0.0.0 255.255.255.254
vrf forwarding BLUE

Show Answer

Question: 2

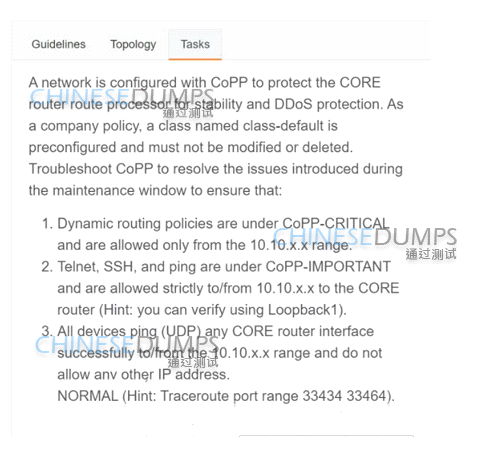

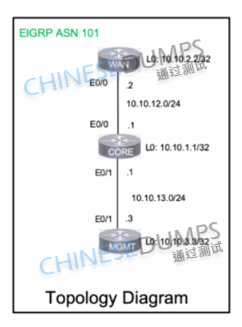

LAB SIMULATION

q2_300-410

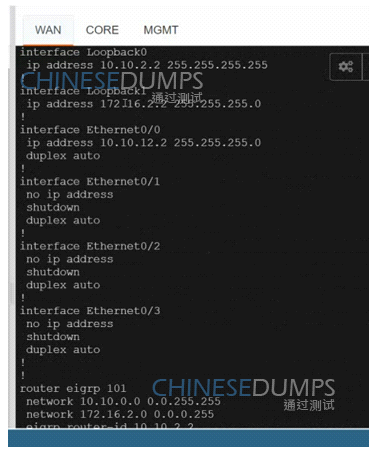

WAN

q2_300-410

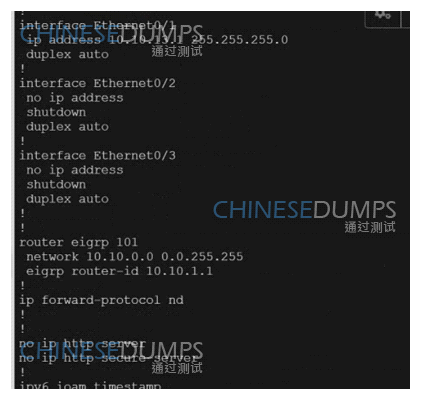

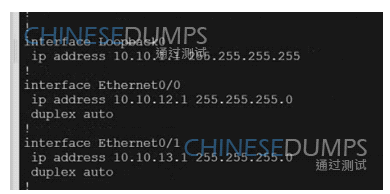

CORE

q2_300-410

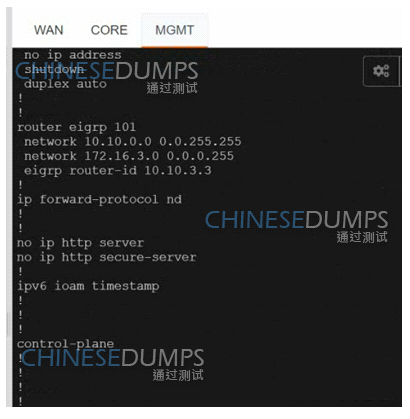

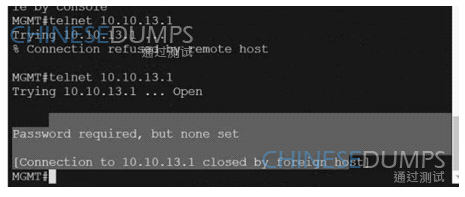

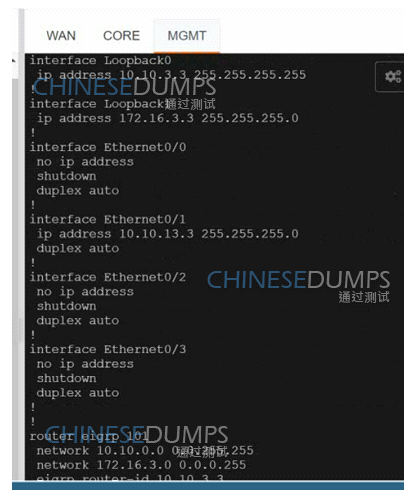

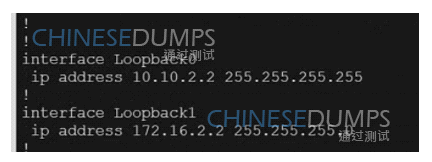

MGMT

q2_300-410

AExplanation:

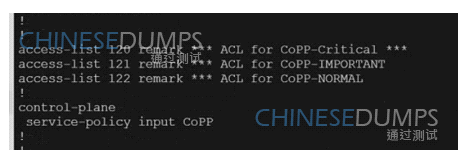

CORE

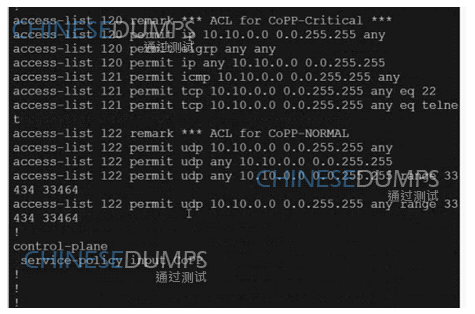

policy-mao CoPP
class CoPP-CRITICAL
police 1000000 50000 50000 conform-action transmit exceed-action transmit

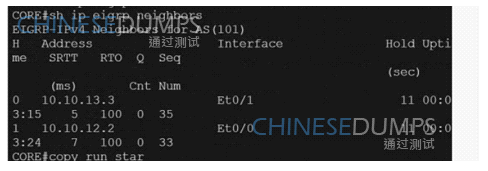

CORE# Copy run start
TESTING: -
CORE

MGMT

Show Answer

Question: 3

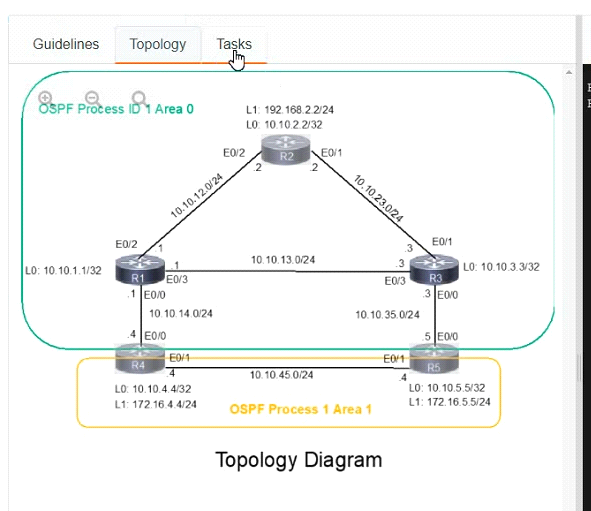

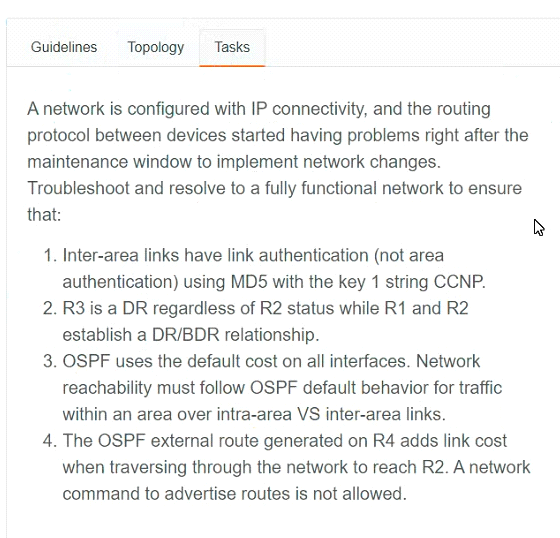

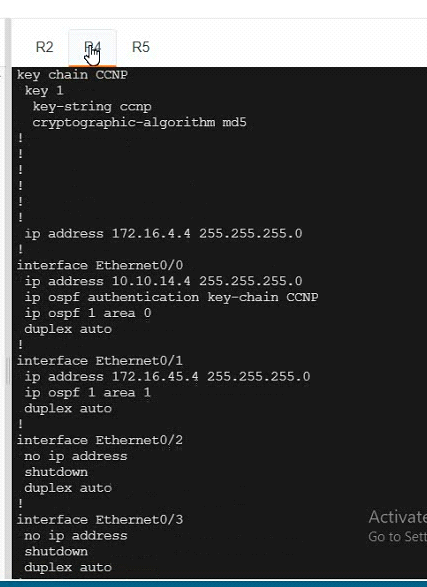

Refer to the exhibit.

q3_300-410

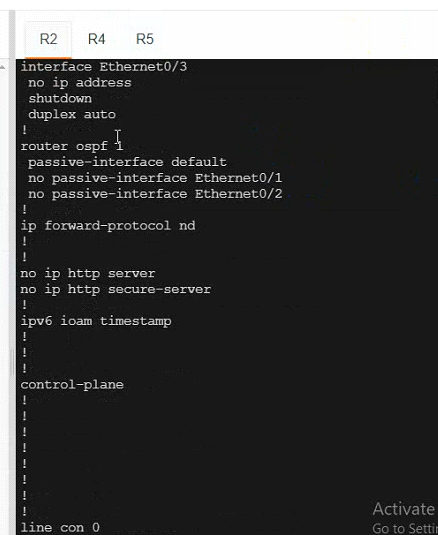

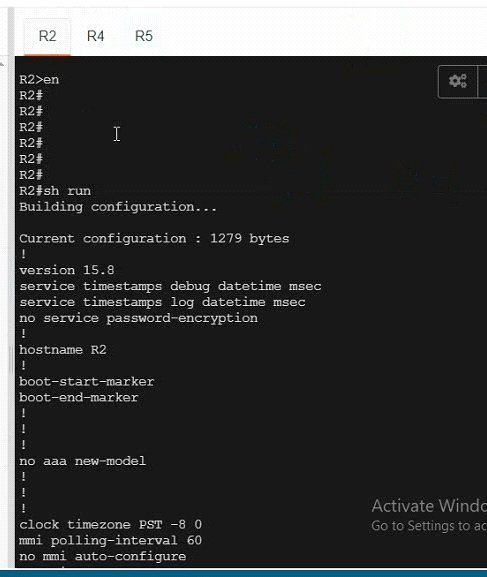

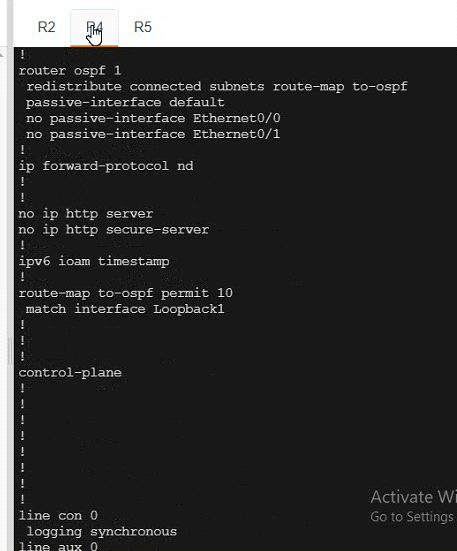

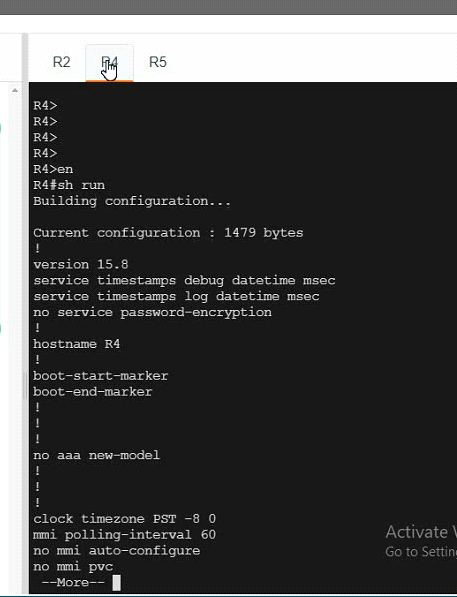

R4

q3_300-410

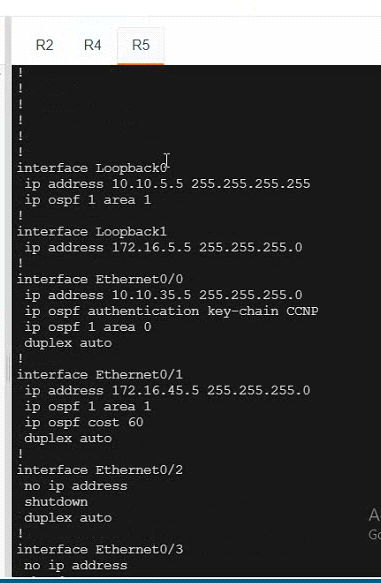

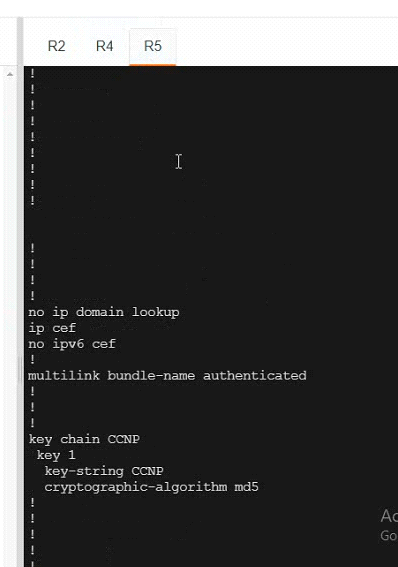

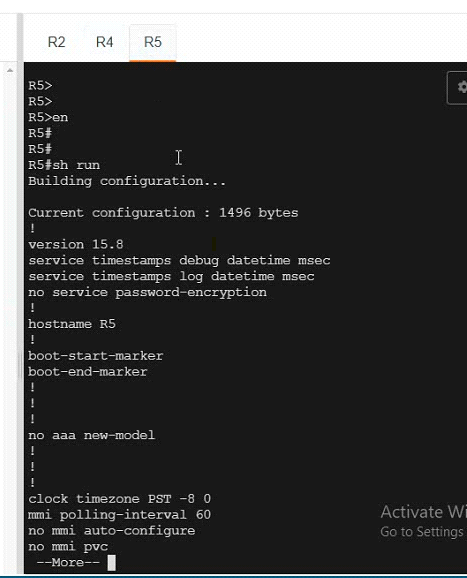

R5

q3_300-410

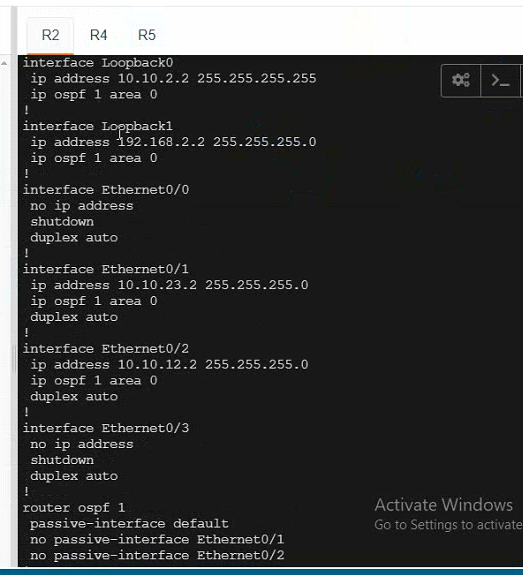

AExplanation:
R4
Int range et0/0 -- 1
Ip ospf authentication message-digest
Ip ospf message-digest-key 1 md5 CCNP
Router ospf 1
Redistribute connected subnets route-map to-ospf metric-type 1
Copy run start
R5
Int range et0/0 -- 1
Ip ospf authentication message-digest
Ip ospf message-digest-key 1 md5 CCNP
Interface eth 0/1
Ip ospf cost 10
Copy run start

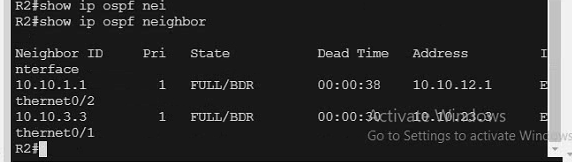

VERIFICATION:-

Show Answer

Question: 4

LAB SIMULATION

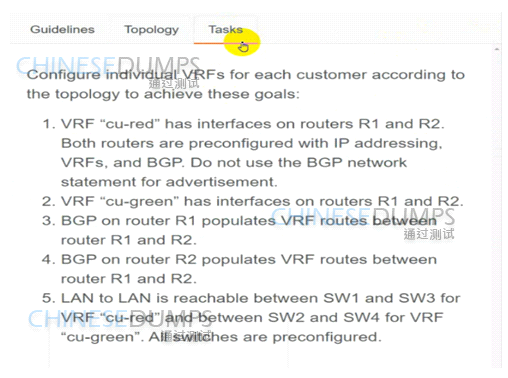

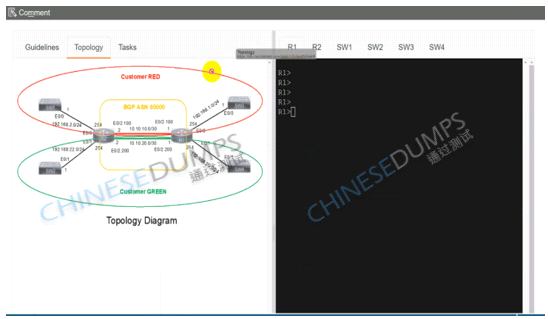

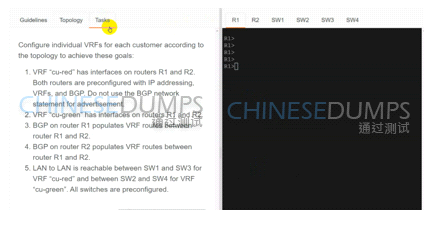

Configure individual VRFs for each customer according to the topology to achieve these goals :

q4_300-410

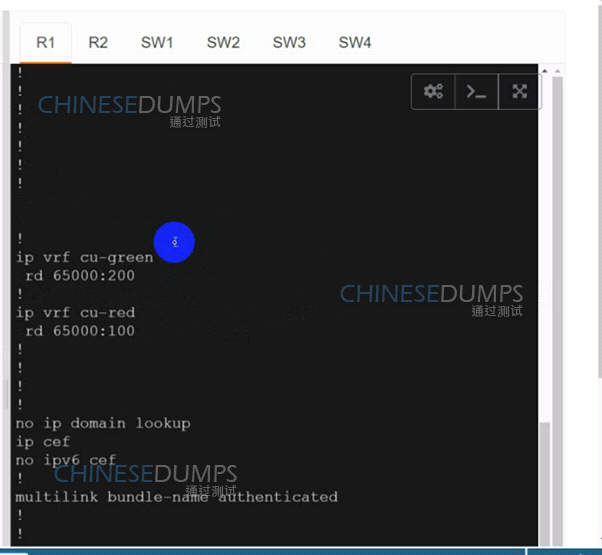

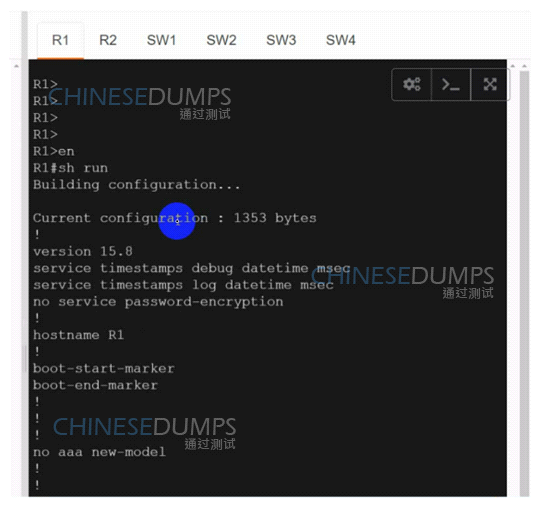

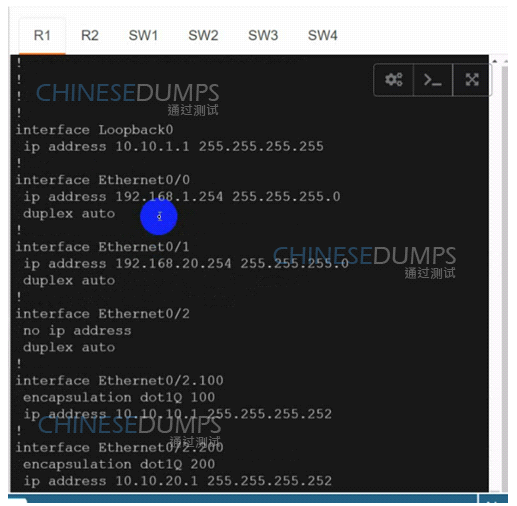

R1

q4_300-410

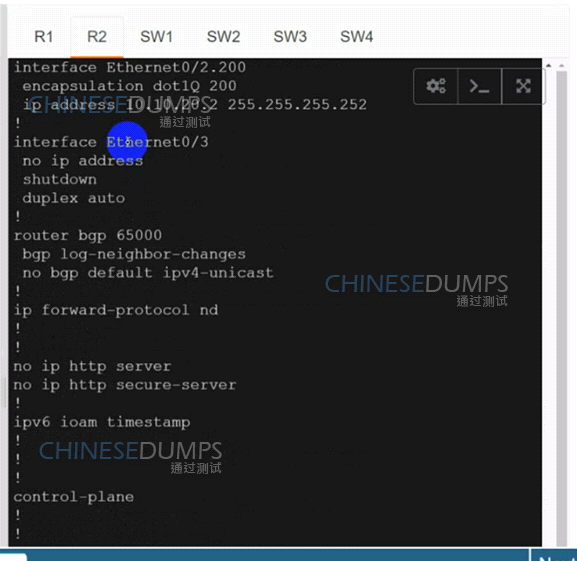

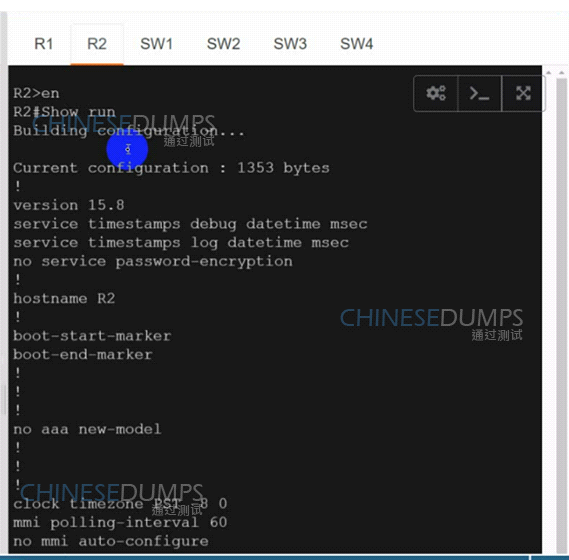

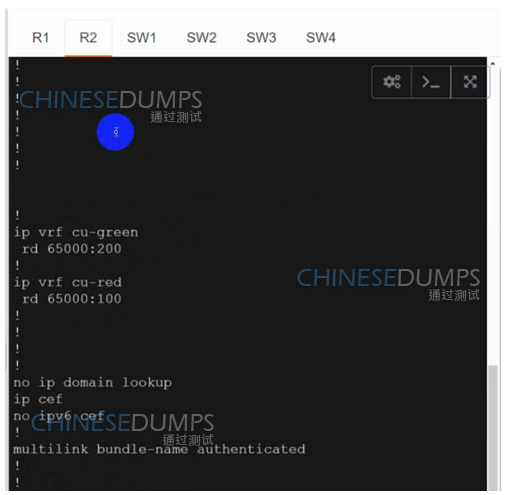

R2

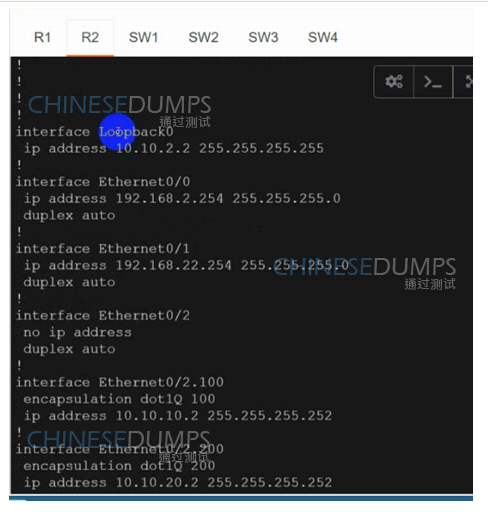

q4_300-410

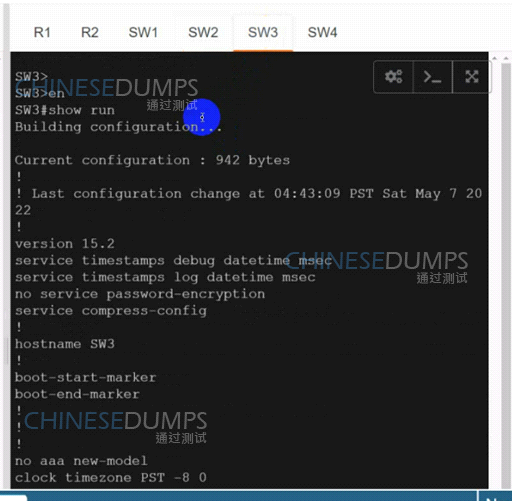

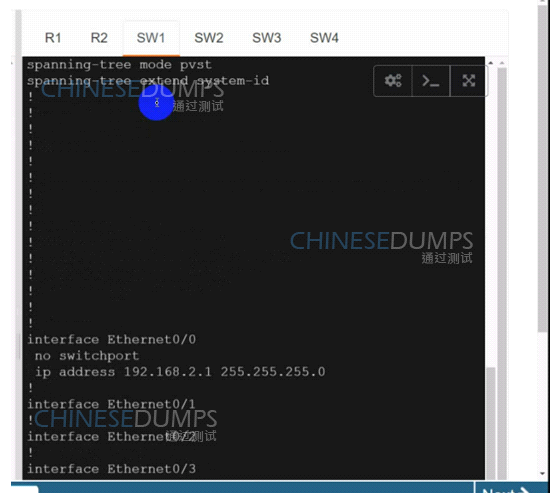

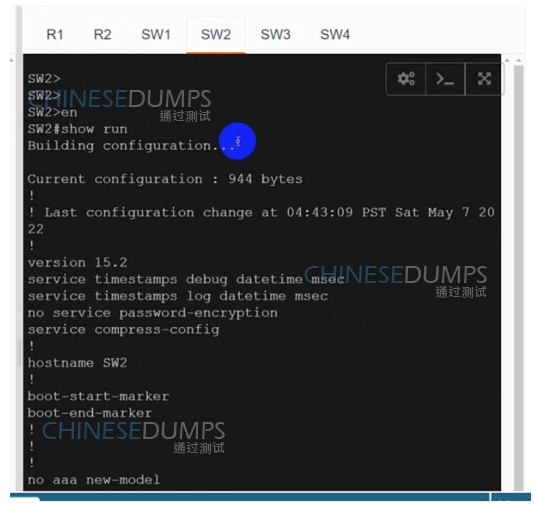

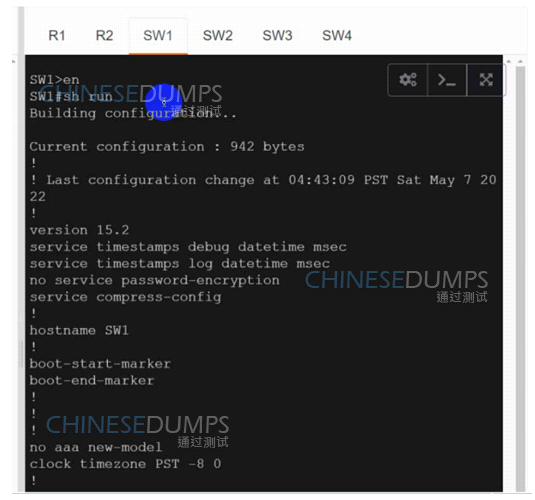

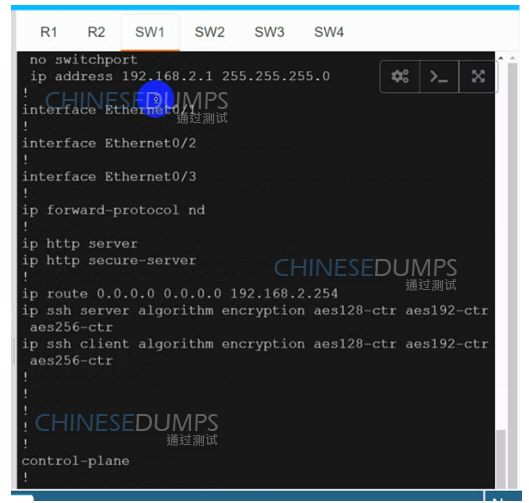

SW1

q4_300-410

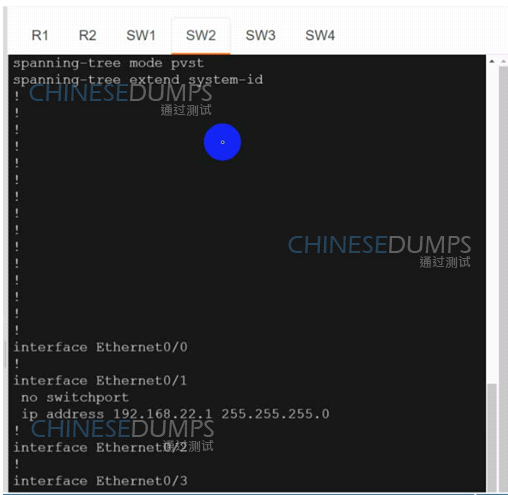

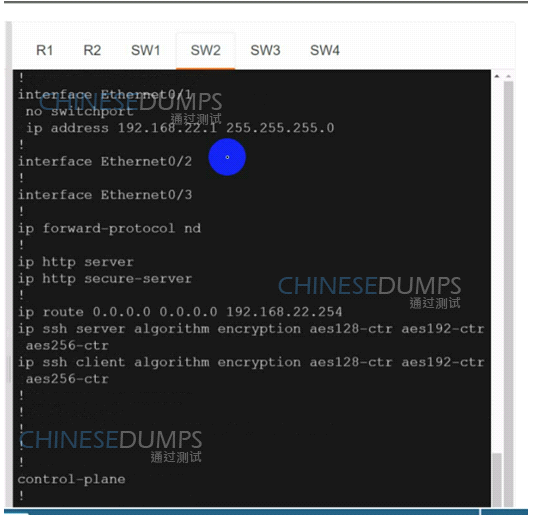

SW2

q4_300-410

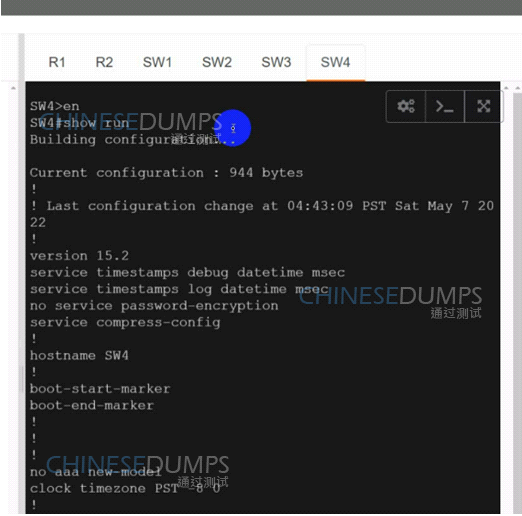

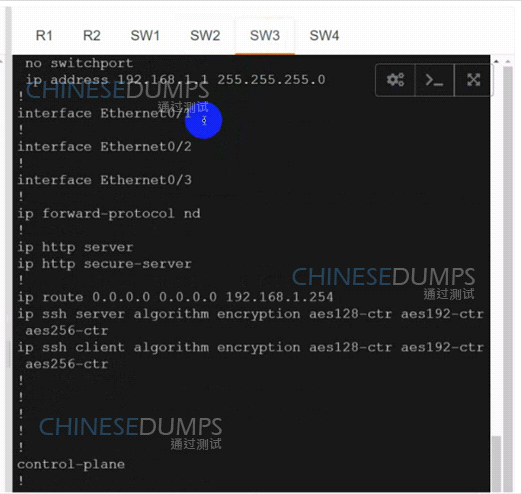

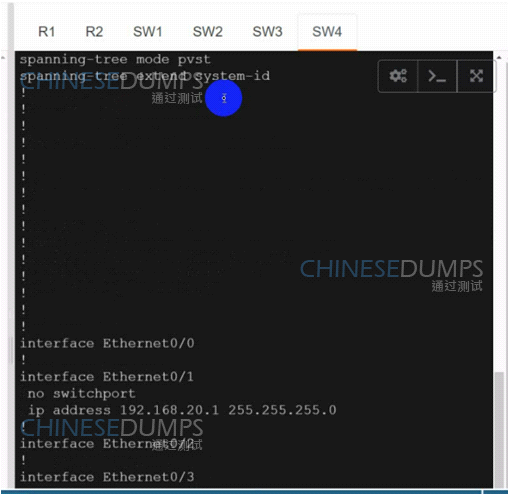

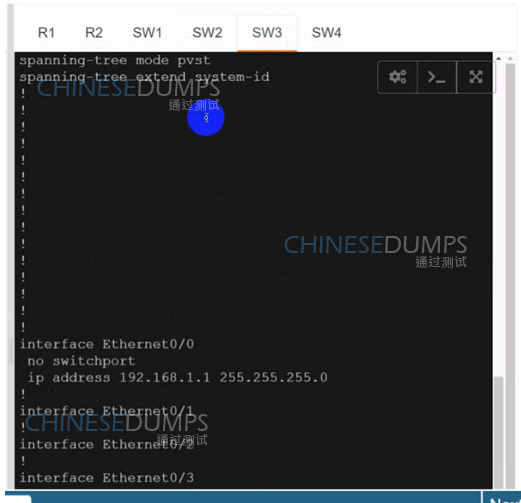

SW3

q4_300-410

AExplanation:
Solution:
Use cu-red under interfaces facing SW1 & SW3:
On R1:
interface Ethernet0/0
ip vrf forwarding cu-red
ip address 192.168.1.254 255.255.255.0
Check reachability to SW1:
R1#ping vrf cu-red 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R2:
interface Ethernet0/0
ip vrf forwarding cu-red
ip address 192.168.2.254 255.255.255.0
Check reachability to SW3:
R2#ping vrf cu-red 192.168.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
!!!!!

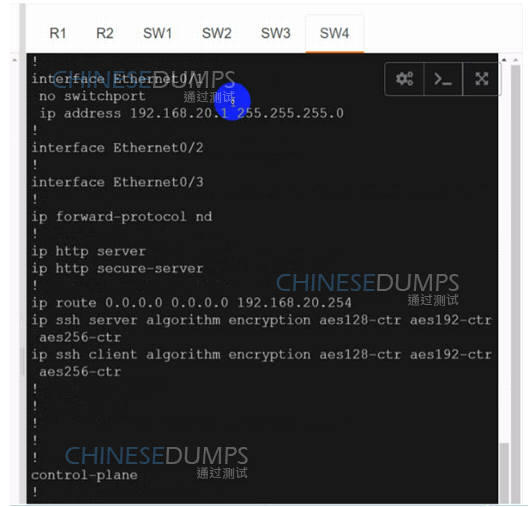

Use vrf cu-green for SW2 & SW4:
On R1:
interface Ethernet0/1
ip vrf forwarding cu-green
ip address 192.168.20.254 255.255.255.0
Test reachability to SW2:
R1#ping vrf cu-green 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R2:
interface Ethernet0/1
ip vrf forwarding cu-green
ip address 192.168.22.254 255.255.255.0
Test reachability to SW4:
R2#ping vrf cu-green 192.168.22.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R1:
interface Ethernet0/2.100
mpls ip
!
interface Ethernet0/2.200
mpls ip
!

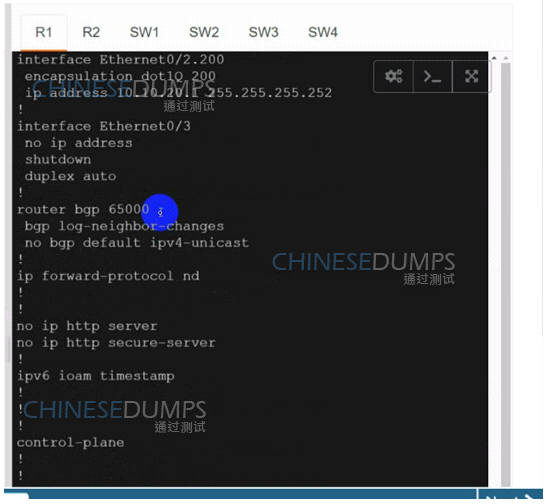

Configure BGP:
router bgp 65000
neighbor 10.10.10.2 remote-as 65000
neighbor 10.10.20.2 remote-as 65000
!
address-family vpnv4
neighbor 10.10.10.2 activate
neighbor 10.10.20.2 activate
exit-address-family
!
address-family ipv4 vrf cu-green
redistribute connected
exit-address-family
!
address-family ipv4 vrf cu-red
redistribute connected
exit-address-family
!
R1(config)#ip vrf cu-red
R1(config-vrf)#route-target both 65000:100
!
R1(config)#ip vrf cu-green
R1(config-vrf)#route-target both 65000:200
On R2:
interface Ethernet0/2.100
mpls ip
!
interface Ethernet0/2.200
mpls ip
!
router bgp 65000
neighbor 10.10.10.1 remote-as 65000
neighbor 10.10.20.1 remote-as 65000
!
address-family vpnv4
neighbor 10.10.10.1 activate
neighbor 10.10.20.1 activate
exit-address-family
!
address-family ipv4 vrf cu-green
redistribute connected
exit-address-family
!
address-family ipv4 vrf cu-red
redistribute connected
exit-address-family
R2(config)#ip vrf cu-red
R2(config-vrf)#route-target both 65000:100
!
R2(config)#ip vrf cu-green
R2(config-vrf)#route-target both 65000:200
Verification:
From SW1 to SW3:
SW1#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
But can't Reach SW2 or SW4 in VRF cu-green:
SW1#ping 192.168.22.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
SW1#ping 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
Same Test for SW2:
From SW2 to SW4:
SW2#ping 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
But can't Reach SW3 or SW1 in VRF cu-red:
SW2#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
SW2#ping 192.168.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
Both R1 & R2 has separate tables for VRFs cu-red and cu-green.

Show Answer

Question: 5

An engineer configures PBR en R5 and wants to create a policy that matches traffic destined toward 10.10.10.0/24 and forwards it toward 10.1.1 1. This traffic must also have its IP precedence set to 5. All other traffic should be forwarded toward 10.1.1.2 and have its IP precedence set to 0. Which configuration meets the requirements?

q5_300-410

AOption A

BOption B

COption C

DOption D

Show Answer
