Question: 1
While troubleshooting connectivity issues to a router, these details are noticed:
*Standard pings to all router interfaces, including loopbacks, are successful.
*Data traffic is unaffected.
*SNMP connectivity is intermittent.
*SSH is either or disconnects frequently.
Which command must be configured first to troubleshoot this issue?
Question: 2
Refer to the exhibit.
A router receiving BGP routing updates from multiple neighbors for routers in AS 690. What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1..1?
Question: 3
A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output does not show the time of the flap. Which command allows on the switch the time of the flap according to the clock on the device?
Question: 4

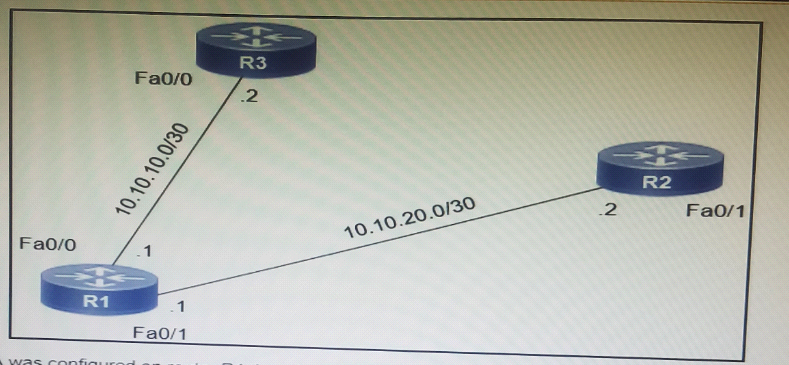

Refer to the exhibit.
An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 losses reachability with the router R3 Fa0/0 interface. The route has changed to flow through route R2. Which debug command is used to troubleshoot this issue?
Question: 5

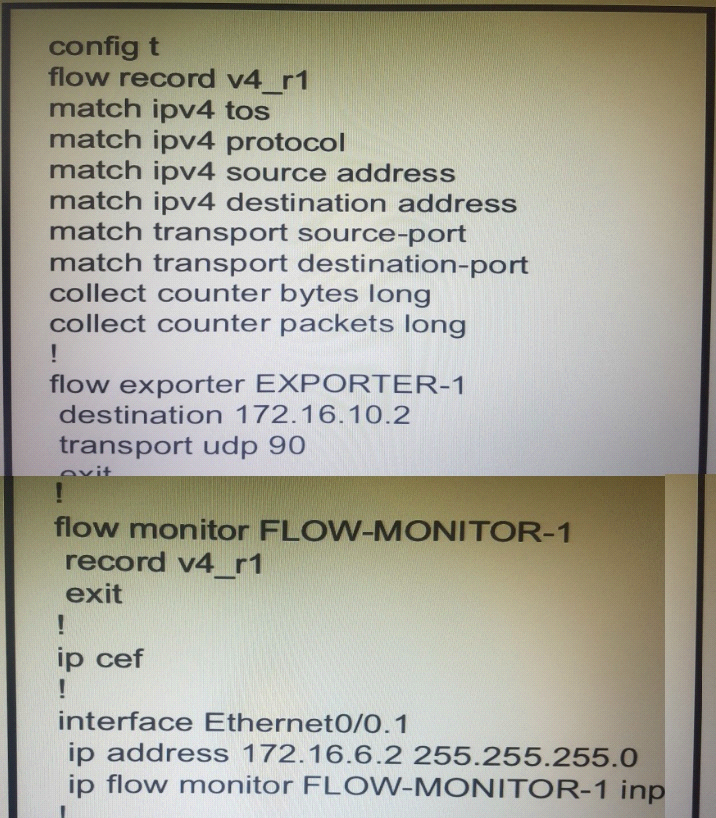

Refer to the exhibit.
What is the result if applying this configuration?
