Question: 1

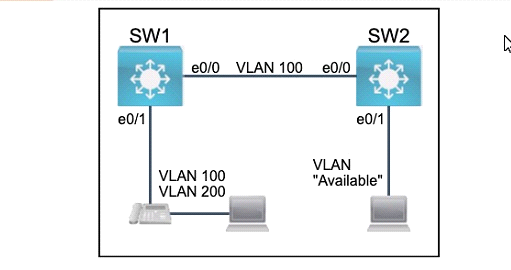

All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.
1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
3. Configure the connection between the switches using access ports.
4. Configure Ethernet0/1 on SW1 using data and voice VLANs.
5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.
A Explanation:
Answer as below configuration:
on sw1
enable
conf t
vlan 100
name Compute
vlan 200
name Telephony
int e0/1
switchport voice vlan 200
switchport access vlan 100
int e0/0
switchport mode access
do wr
on sw2
Vlan 99
Name Available
Int e0/1
Switchport access vlan 99
do wr
Answer : A
Show Answer
Hide Answer
Question: 2

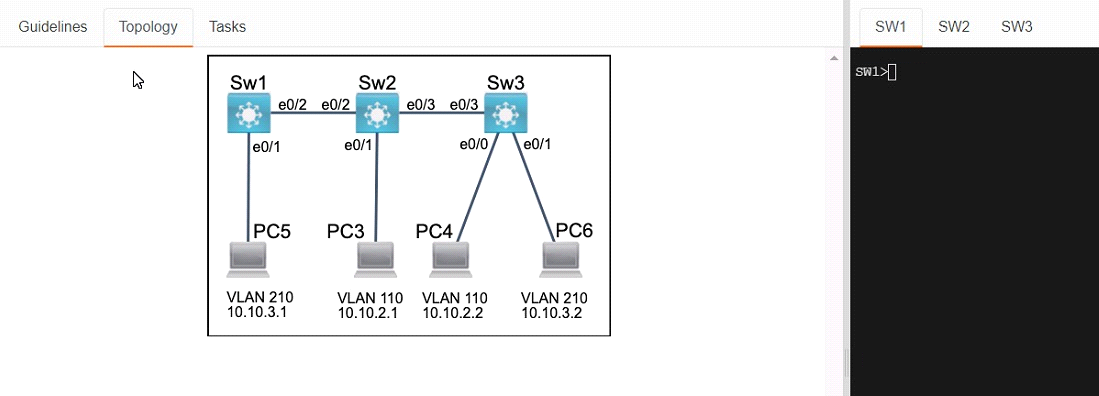

Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.
The network needs two user-defined VLANs configured:
VLAN 110: MARKETING
VLAN 210: FINANCE
1. Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.
2. Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.
3. Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.
A Explanation:
Answer as below configuration:
Sw1
enbale
config t
Vlan 210
Name FINANCE
Inter e0/1
Switchport access vlan 210
do wr
Sw2
Enable
config t
Vlan 110
Name MARKITING
Int e0/1
Switchport acees vlan 110
do wr
Sw3
Enable
config t
Vlan 110
Name MARKITING
Vlan 210
Name FINANCE
Int e0/0
Switchport access vlan 110
Int e0/1
Switchport access vlan 210
Sw1
Int e0/1
Switchport allowed vlan 210
Sw2
Int e0/2
Switchport trunk allowed vlan 210
Sw3
Int e0/3
Switchport trunk allowed vlan 210
Switchport trunk allowed vlan 210,110
Answer : A
Show Answer
Hide Answer
Question: 3
Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.
2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.
A Explanation:
Answer as below configuration:
conf t
R1(config)#ntp master 1
R2(config)#ntp server 10.1.2.1
Exit
Router#clock set 00:00:00 jan 1 2019
ip dhcp pool TEST
network 10.1.3.0 255.255.255.0
ip dhcp exluded-address 10.1.3.1 10.1.3.10
R3(config)#int e0/3
R3(config)#int e0/2
ip address dhcp
no shut
crypto key generate RSA
1024
Copy run start
Answer : A
Show Answer
Hide Answer
Question: 4
IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:
1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.
A Explanation:
Answer as below configuration:
On R2:
Enable
Conf t
Ip route 192.168.1.0 255.255.255.0 10.10.31.1
On R1:
Enable
Conf t
Ip route 0.0.0.0 0.0.0.0 10.10.13.3
On R2
Ip route 172.20.20.128 255.255.255.128 e0/2
Ip route 172.20.20.128 255.255.255.128 e0/1
On R1
Ip route 192.168.0.0 255.255.255.0 e0/1
Ip route 192.168.0.0 255.255.255.0 10.10.12.2 3
Save all configurations after every router from anyone of these command
Do wr
Or
Copy run start
Answer : A
Show Answer
Hide Answer
Question: 5
An engineer is configuring data and voice services to pass through the same port. The designated switch interface fastethernet0/1 must transmit packets using the same priority for data when they are received from the access port of the IP phone. Which configuration must be used?
A)
B)
C)
D)
