Question: 1
A business analyst has documented the following description for the task 'Mark Script
1. Do Mark Script
2. Assessor enters student-id
3. IF system finds student-id
4. THEN display student details
5. ELSE return to step 3 (re-enter student-id)
6. Download script
7. ENDIF
8. Mark script
9. IF student fails
10. THEN write feedback comments about the script
11. ENDIF
12. Indicate that script is fully marked
13. System transfers marker fee amount to assessor's account
14. ENDDO- end of the mark script task
If an activity diagram is drawn for this task, how many flows will there be to the final c1ompletion (Shown as a bull's eye) of the diagram?
Question: 2
The owner of a shop is taking a telephone order from a customer for a new vacuum cleaner. He needs to take and confirm customer details in this ordering process. As part of this, he enters the customer details onto a system.
What does the entry of the customer's name, address and contact number represent?
Question: 3

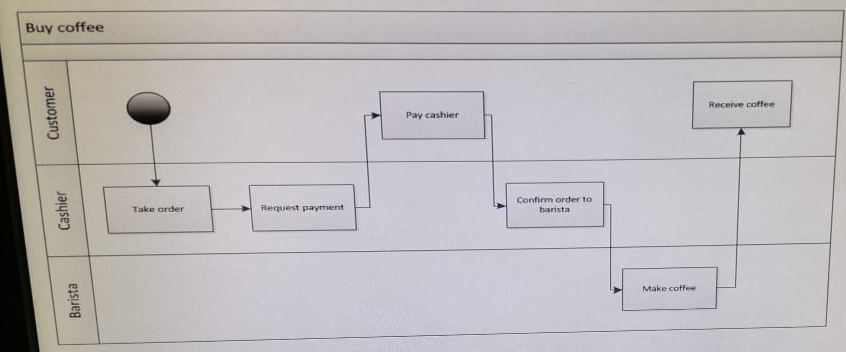

What is NOT clear from the following fragment of a business process model?
Question: 4
Freddie's Sandwich Shop makes sandwiches to order, using the finest locally sourced ingredients. Freddie gets his bread from Country Bakes and the fillings for his sandwiches from Belle View Farms. Freddie's local approach has proved popular and many people now get their lunch from his shop. rather than from a branch of Wholegram Foods, which used to be the town's most popular sandwich shop.
Freddie is expanding his business to provide catering for local organisations and has just won a contract to provide sandwich lunches for UK Systems Limited, the local headquarters of a highly successful computer company. However, Freddie is worried about the poor wheat harvest and the effect this might have on the cost of his bread. He has also heard that UK Systems Limited has lost a valuable contract to an overseas competitor
In Harmon's organisational model, which of the following would provide inputs to internal processes?
Question: 5
A business analyst has suggested that a process map should be built by first examining the product and services the organization provides. Before considering what process are needed to deliver these products and services.
Which model would support this approach to building a process map?
