Free Practice Mock Questions Set 1-5 (Quiz # 1) for API-577 Exam, according to official API Welding Inspection and Metallurgy Exam syllabus topic # 6

Question: 1

Where is the weld HAZ assumed to be for purposes of hardness testing?

A0.25 inch on either side of the fusion zone

B0.25 inch away from the toe of the weld into the base metal

C1 inch on either side of the centerline of the weld

DJust adjacent to the toe of the weld

Answer : D

Show Answer

Hide Answer

Question: 2

If a test specimen from a welded coupon should fail during PQR mechanical tests:

AThree out of four of the required test specimens must pass.

BThe test coupon fails and a new coupon is required.

CTwo additional test specimens from the coupon must be tested and pass.

DThe WPS fails.

Answer : B

Show Answer

Hide Answer

Question: 3

A-number groupings are based upon the:

AChemical composition of the deposited weld metal.

BComparable base metal ultimate strength values.

CWeldability characteristics of the metal.

DType and strength of base metal.

Answer : A

Show Answer

Hide Answer

Question: 4

P-numbers are based on which of the following?

AComparable base metal characteristics

BWeldability characteristics of base metal

CElectrode characteristics

DChemical composition of the base metal

Answer : B

Show Answer

Hide Answer

Question: 5

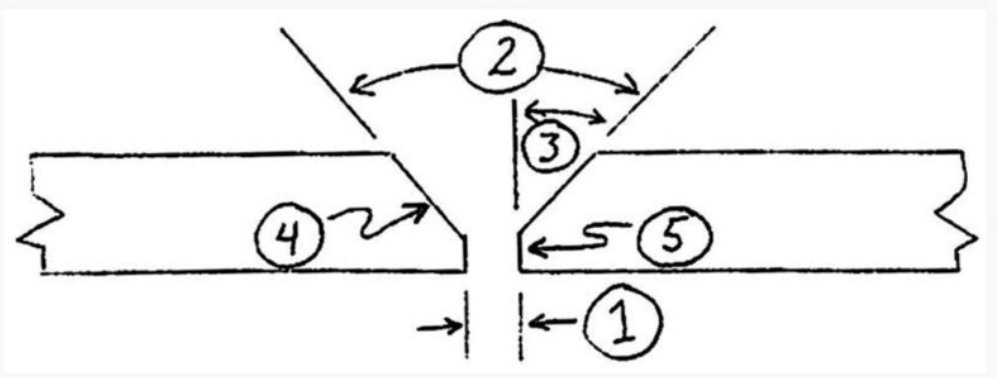

Refer to the following diagram:

q5_API-577

Item#4 represents:

Abevel face.

Bbevel angle.

Cgroove angle.

Dgroove face.

Answer : B

Show Answer

Hide Answer
